Hexagonal Wire Netting

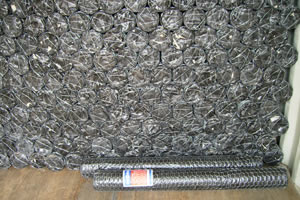

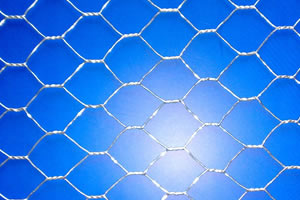

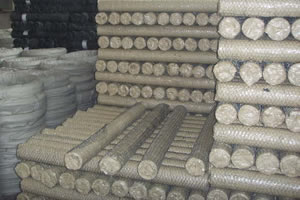

Hexagonal wire mesh, or hexagonal wire netting, is also known by the name of chicken mesh. Hexagonal wire netting is manufactured in galvanized iron and galvanized iron drawn wire .
Hexagonal Wire Netting Application: Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.



Galvanized hexagonal wire netting |
mesh |
Min. Gal.v.
G/SQ.M |
Width
|
Wire Gauge (Diameter)
BWG |
Inch
|
mm |
Tolerance(mm) |
3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4" |
31mm |
±4.0 |
0.9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
|
| |
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting. |
| |

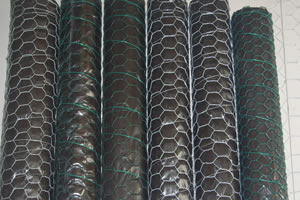

PVC Coated Hexagonal Wire Netting |
Mesh |
Wire Gauge (MM) |
Width |
Inch |
MM |
- |
- |
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
We also offer other specifications you need
|
|
|
|
